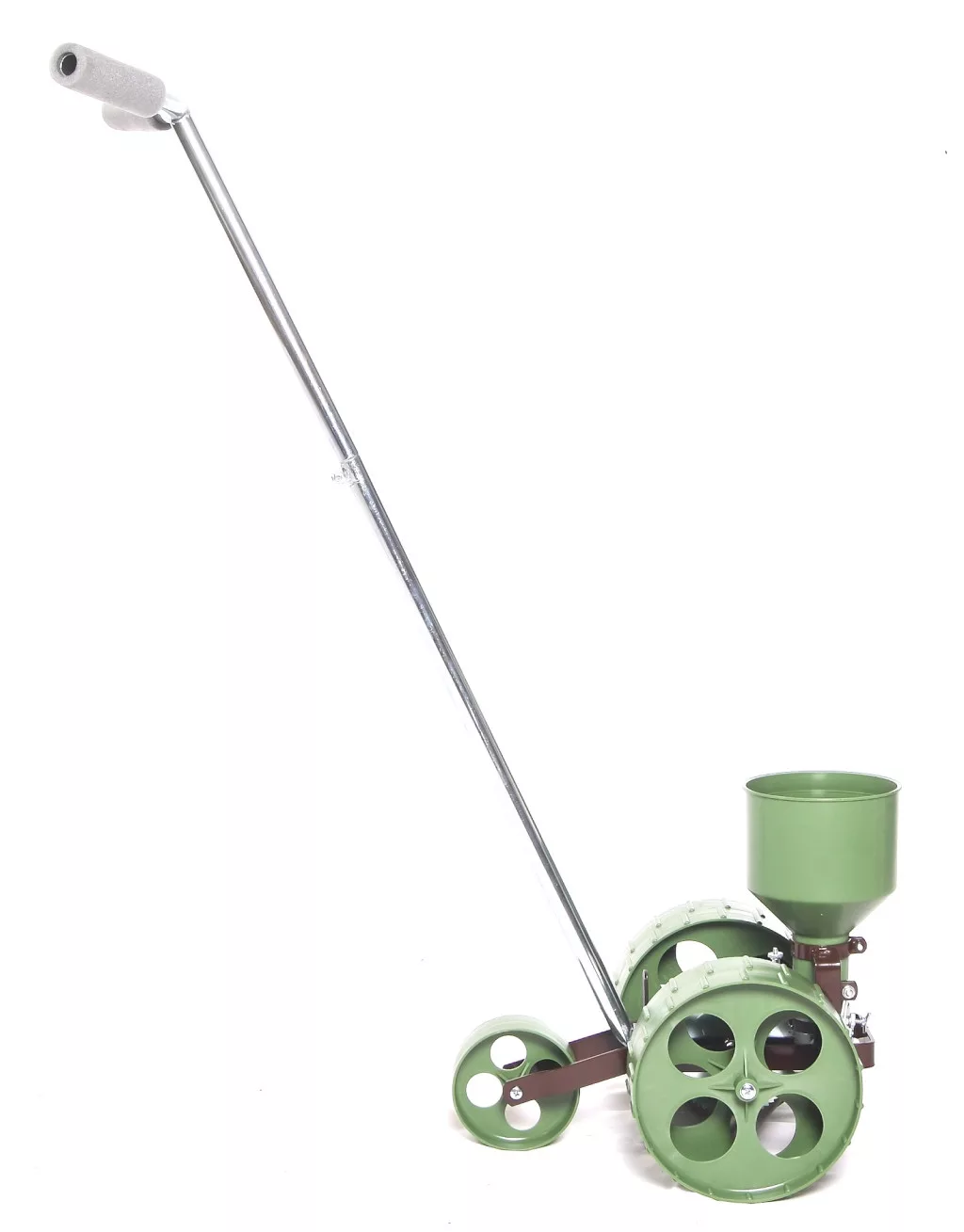

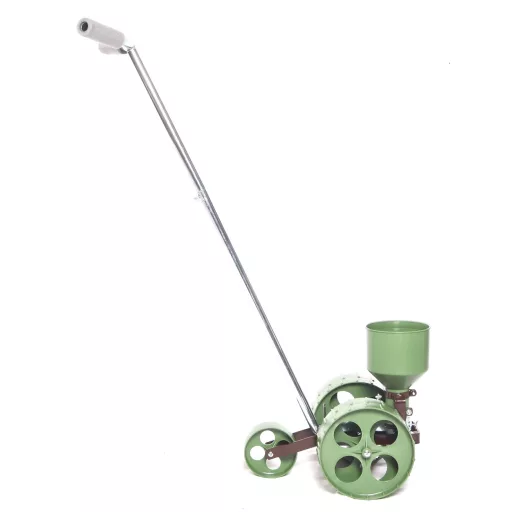

Vibrating tine small row drill R-3

Vibrating tongue seed drills



The vibrating tongue hand seeder is designed to facilitate sowing tasks in home gardens and vegetable gardens. Its use is recommended up to the size of a pea seed.

It is recommended for sowing carrots, parsley, radish, sorrel, spinach, onion, lettuce, cabbage, cauliflower, cauliflower, beetroot, peas, small beans and other seeds of the same size

Benefits:
light weight
easy to handle
Suitable for sowing small quantities of seeds - even 1-2 grams
seeds in the seed tray can be dispersed without residue.


Operation:
The vibration of the dispensing head, which is flexibly connected to the seed hopper, is generated by a toothed disc. The vibratory movement provides the kinetic energy for the seeds. The metering head is connected to the metering head by a spring

to the feeder head allows uniform sowing through an adjustable rotation opening.

The vibratory head seeder provides the seed rate per unit section by easily and quickly adjusting the intensity of the vibration and the size of the swivel opening.

The sowing depth can be adjusted from 1 to 45 millimetres with the coulter coulter without any steps.



Types:
Basic version with narrow wheel without pushing lever: R-1

Double-wheel design without pushing lever: R2

Double-wheel design with pushing lever: R3

Standard wheel with push rod: R-4



Important:
Can be used effectively on well-prepared, smoothly levelled ground.
Before sowing, the machine must be adjusted (vibration intensity, size of the outlet opening).
If properly adjusted, possible levelling can be minimised.
